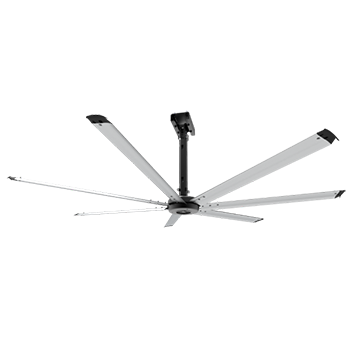

series 3 has patented silent winglet with aircraft-grade aluminum and 5 degrees angle airfoil, it can eliminate the wind noise from the tail end of airfoil effectively, enlarge the air coverage area more than 20%, and provide incredibly silent and comfortable air movement to space such as workshop, ranch, warehouse, and service center.
|
Diameter |
14 ft (4.2m) |
|
Weight* |
35.44 kg |
|
Speed |
56 RPM |
|
Power |
171 W |
|
Max Airflow |
77,555 CFM |
|
Noise |
<40 dB(A) |
|
Power source |
200-240 VAC |
|
Environment |
Indoor |
*Weight: fan unit only, the mount and the extension tube are not included.
※The above specifications are test from SUNON Lab and the data will be affected by different environmental conditions.
Case Study：http://www.invni.com.tw/case/2
Powerful HVLS Fan series 3 is suitable for cooling a large space, it reduces body temperature efficiently and heat dissipation evenly. The high-efficiency BLDC direct-drive motor shows remarkable results and does not require regular oil change for long-term use. This is your top choice for long-term investment in commercial space.

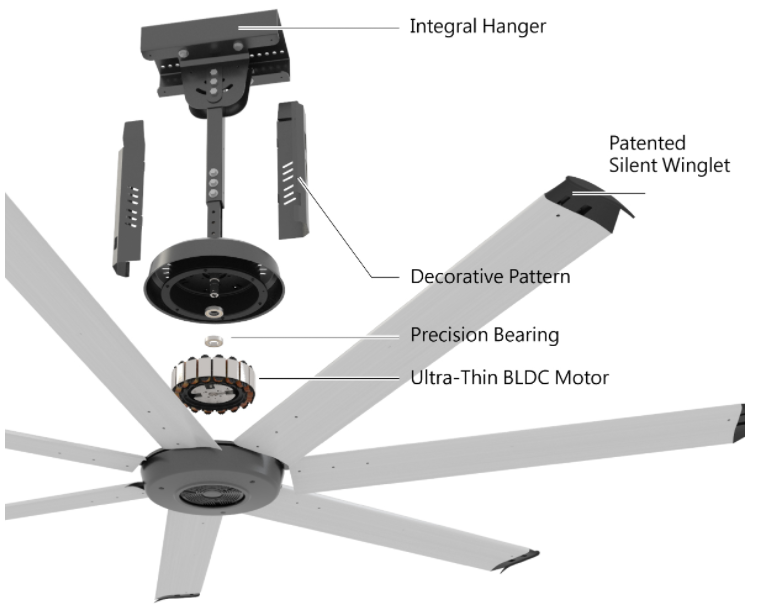

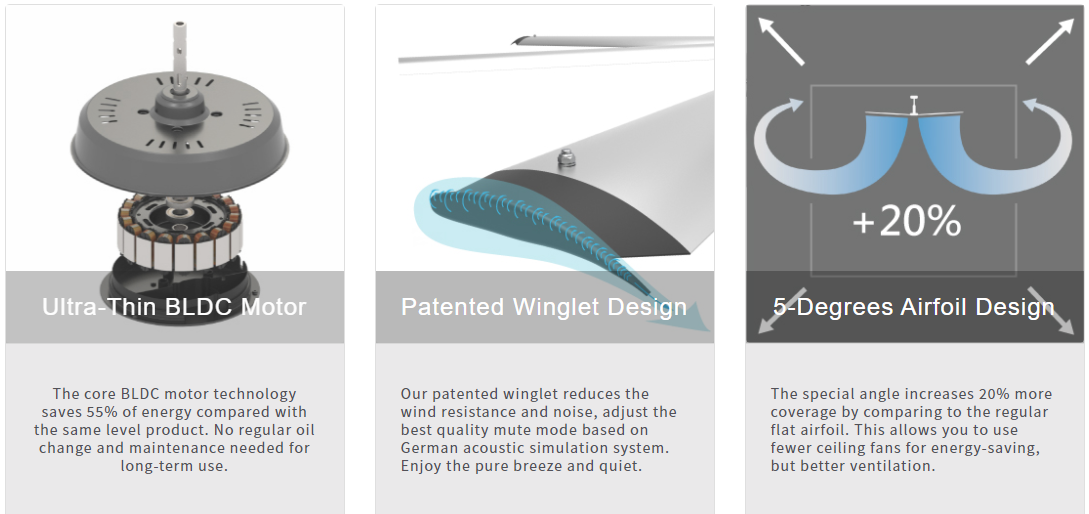

More Than 90% Of Motor Efficiency, Gearless Direct Drive Motor , No Need for Regular Lubrication Maintenance.

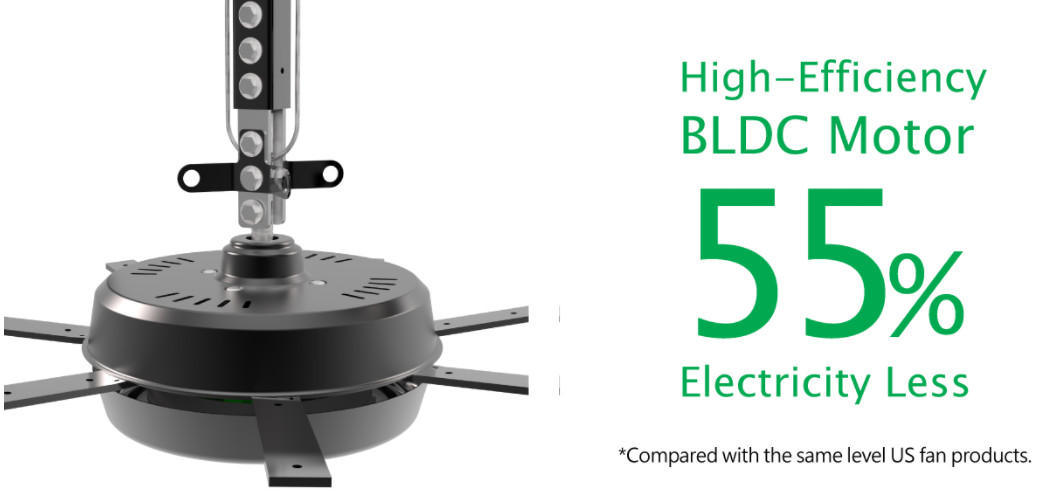

Compared with the US BLDC Fan brand, it saves 55% of electricity.
Patented winglet design, it reduces the wind noise and provides smooth airflow.
SUNON adopts an integrated fan hanger to avoid the risk of rust and breakage caused by poor fabricating.

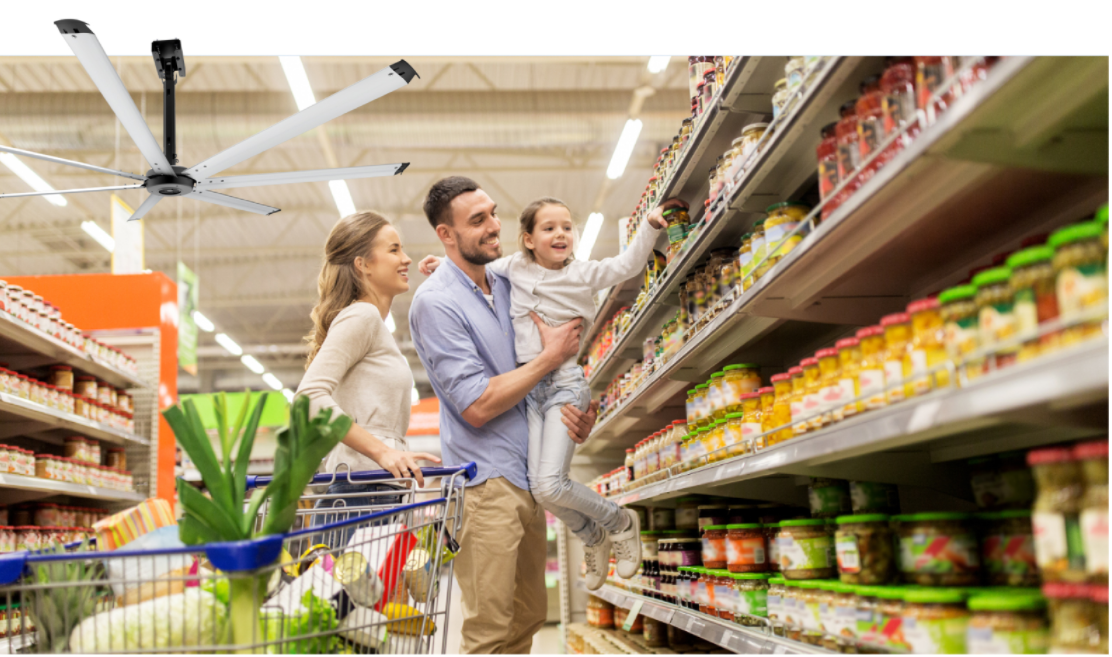

exhibition hall, bookstore, cafe, library, museum, office, meeting room, hotel lobby, hospital, fitness center, home, factory, warehousing
To alleviate the extreme climate, our concern begins with our product design.
(*Power consumption benchmark: Compared with the well-known US brand based on its gearless direct drive products.)

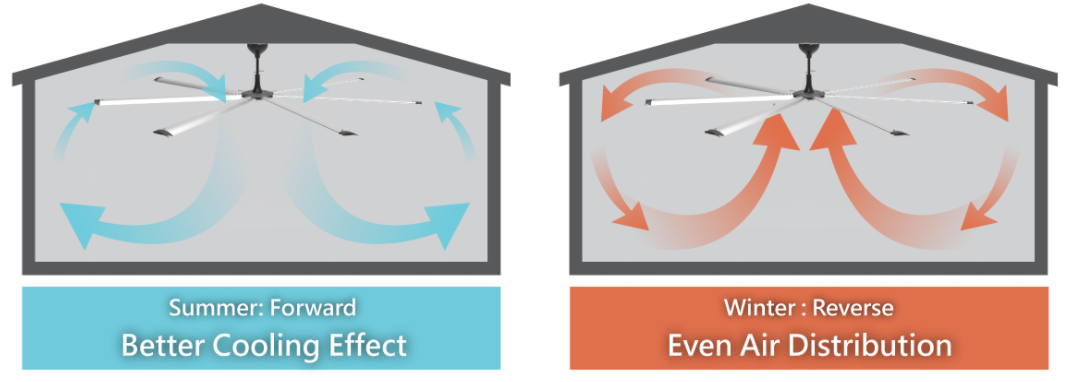

Powerful HVLS Fan resemble the natural breeze, it will generate the massive and smooth airflow. It can replace the AC and make occupants feel the 5-8 degrees temperature difference. Combine with the AC system, it reduces the costs. In the winter, the reverse mode can be switched to push down the warm air on the roof/ceiling, which achieves the effect of adjusting the temperature.

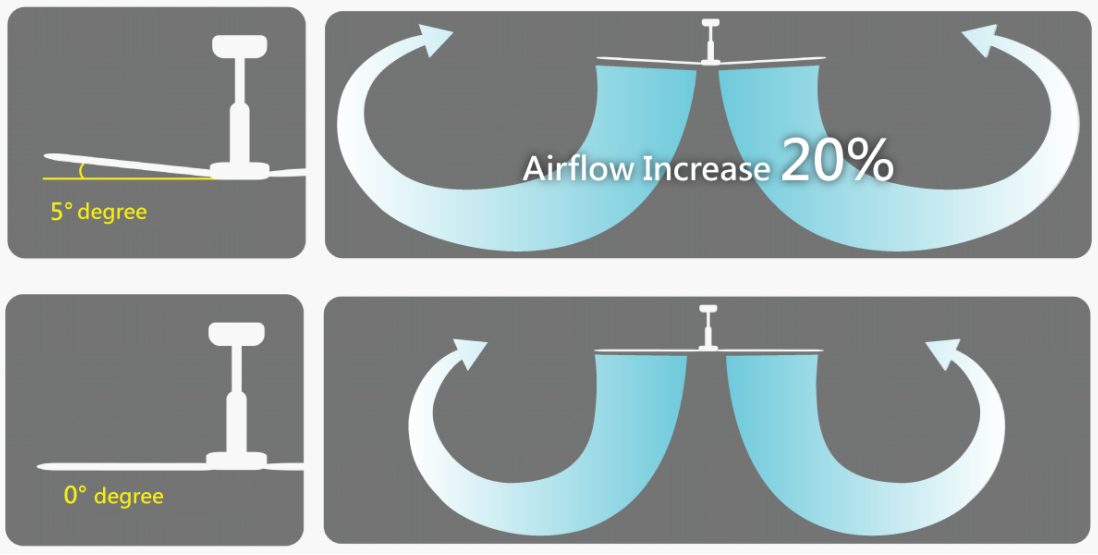

Powerful HVLS Fan airfoils are raised by 5 degrees, which can cover 20% more area than the regular 0-degree airfoils. Due to aerodynamic optimization, it is easier to have a more comfortable and even natural wind.

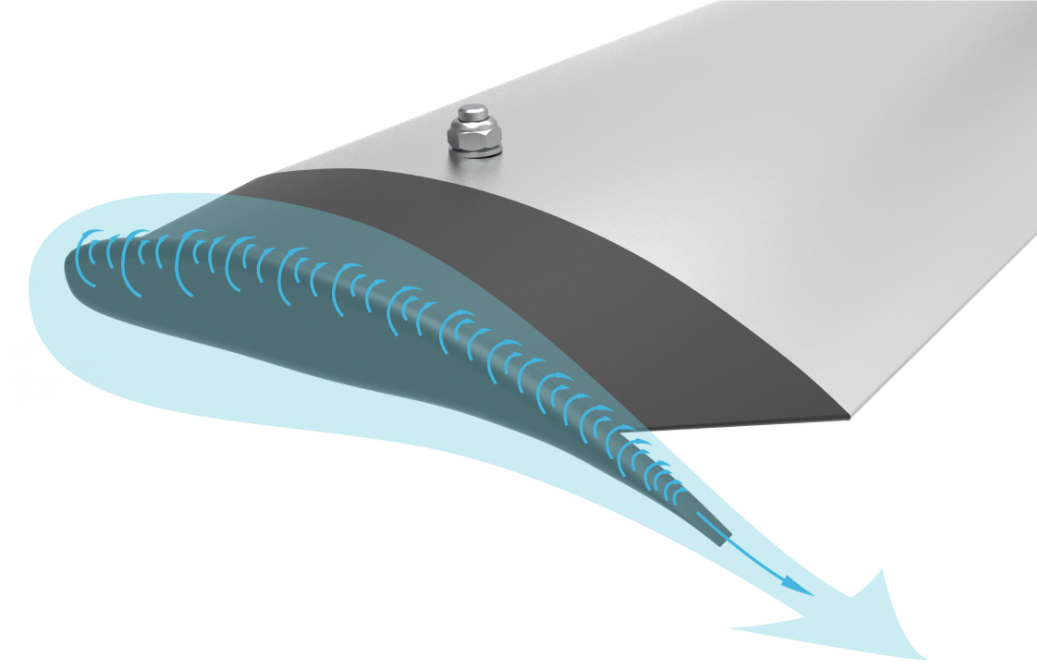

Due to the airflow through the airfoil, the tip of the airfoil is the region with the most severe air disturbance. SUNON runs the tests in 1:1 ratio models through numerous professional simulations, and we also refer to aircraft winglet design. In the end, we present you our patented silent winglet that can suppress the wind noise and turbulence. Combined with aerodynamic winglet to create a comfortable airflow for the workspace.
